Martini

Martini Racing represents a rare fusion of heritage, performance and stunning aesthetics, and so is a natural partner for Passoni. Beyond Martini’s rich history across multiple motorsport disciplines, Martini also has a legacy in cycling — dating back to when Martini & Rossi sponsored the Gran Coppa Ciclistica Martini & Rossi in 1924. In the 1930s, the famous vermouth and sparkling wine producer also had a presence in the Giro d'Italia, with two vehicles in the publicity caravan, bedecked with gigantic replica Vermouth and Martini bottles.

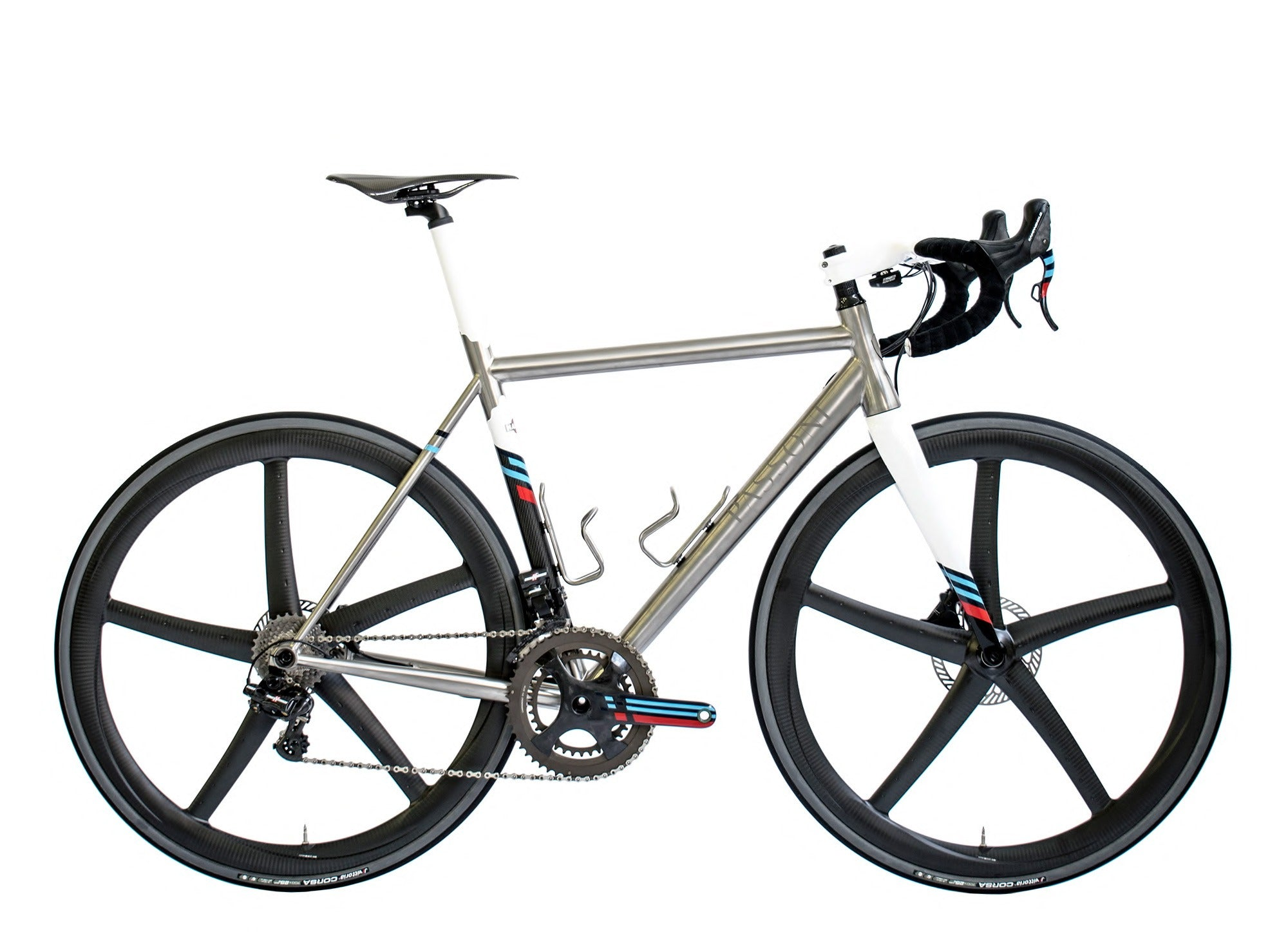

Passoni XXTi Martini Racing limited edition was designed to celebrate the 50-year anniversary of Martini Racing. The ornate colour scheme evokes the iconic Italian rally cars of the 1980s and 1990s, adding a flourish of colour to our otherwise understated XXTi design.

The XXTi was a perfect fit for the collaboration, born from two elemental materials combined to create a ride beyond comparison. Calling upon the complete expertise of our artisan builders, the XXTi Disco elicits the best of both titanium and carbon fibre.

Lightweight and forgiving, yet resolute enough to rip through the most hard-fought races, the addition of disc brakes keeps the entire ensemble under complete control in every situation.

Frame Specification

Tubes

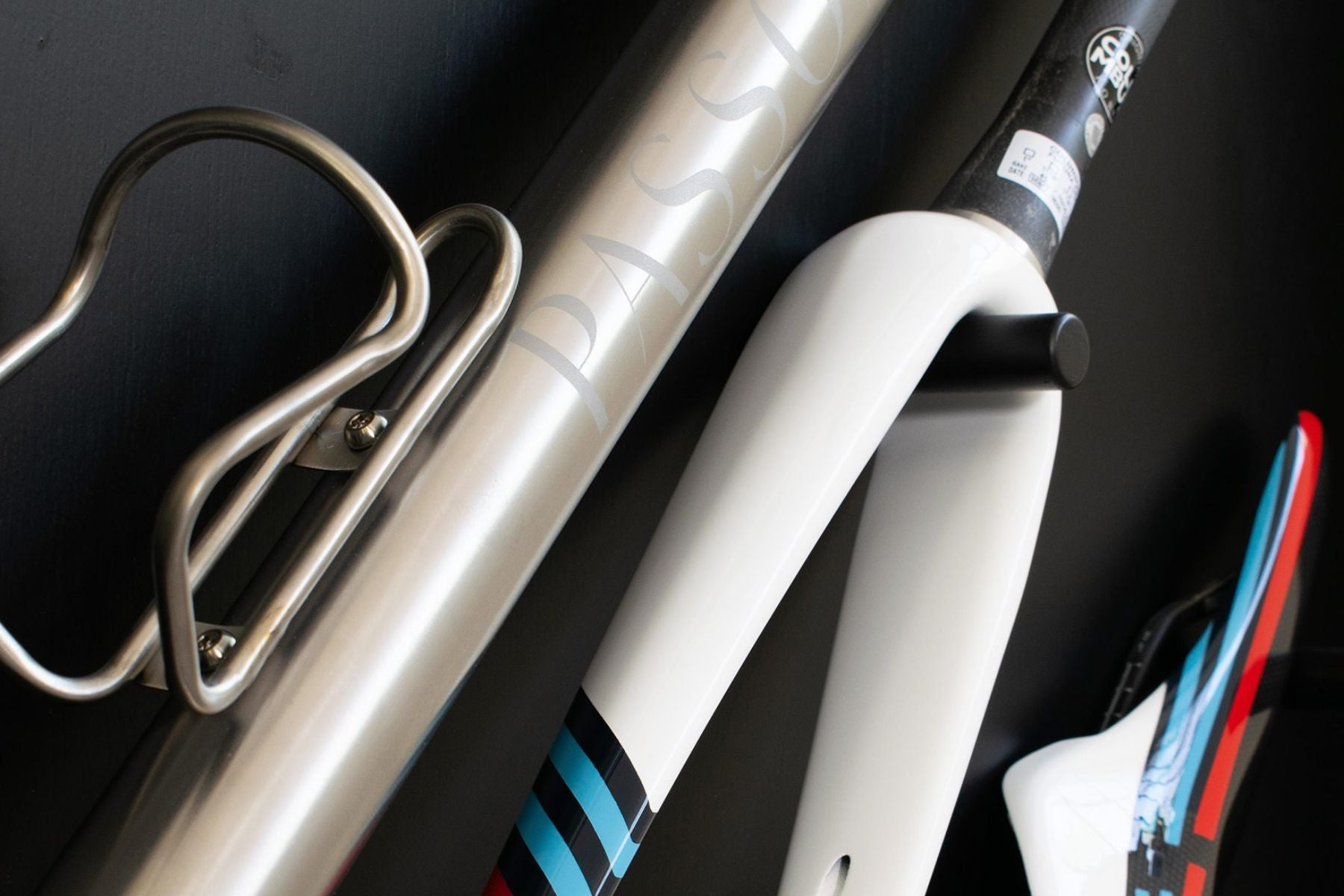

Titanium grade 9 (3Al / 2,5V) with different thicknesses, drawn and strengthened. Titanium grade 5 (6Al / 4V) for head tube, bottom bracket shell and dropouts, CNC works

Front triangle

Round tubes, top tube Ø 36.4mm, seat tube Ø 35 mm in carbo-titanium, downtube Ø 48mm bi-oval

Rear triangle

Round seat stays taper Ø 16 mm. Oval chain stays taper 21 x 27 mm S-shaped

Bottom bracket shell

Titanium grade 5, CNC machined, Passoni engraved logo and frame code, PF30 system (3) Interlock bottom bracket system

Head tube

Integrated conical Ø 56mm, CNC machined, bearings Ø 1”1/8 upper – 1”1/2 lower

Dropouts

Adjustable dropout titanium grade 5, CNC machined, Ergal insert for disc brake thru-axle support. Fixed with titanium bolts

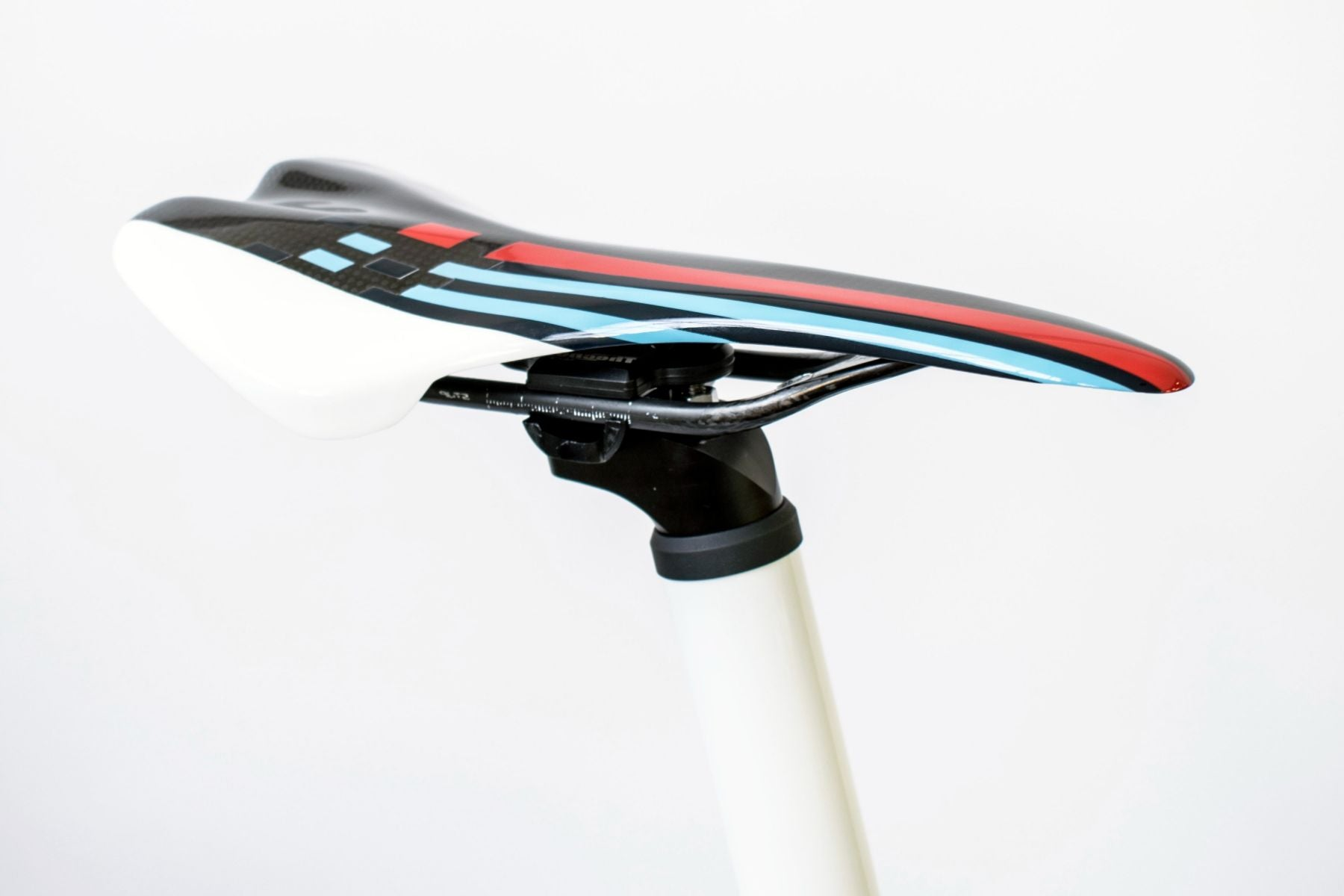

Seat post

Integrated seat tube

Fork

Columbus Futura Ø 56 mm, thru-axle 100 x 12 customised Passoni

Options

The frame is available for mechanical groupset, Di2/EPS groupset or wireless groupset

Place an order with us

Drop us a note using this form if you are looking to purchase this model.

As this model is customizable, we will contact you to discuss in greater detail on available options and finish.

Alternatively, you can email us at sales@bikesnbites.com
