Vinci 30

Vinci has two meanings for us at Passoni. Of course, Vinci means “win” in Italian, but there’s also a deeper meaning. Passoni aims for perfection with every bicycle, tapping into that elusive holy trinity of symmetry, beauty and quality. That’s why our brand emblem is inspired by Leonardo Da Vinci’s Vitruvian Man.

The Da Vinci connection is rooted in Passoni’s geography too: the remarkable Renaissance man perfected his famous ink drawing during a 17-year spell in Milan and the Adda valley, which has served as their heartland. Passoni’s early office was on Via Fausto Coppi in nearby Verderio Inferiore.

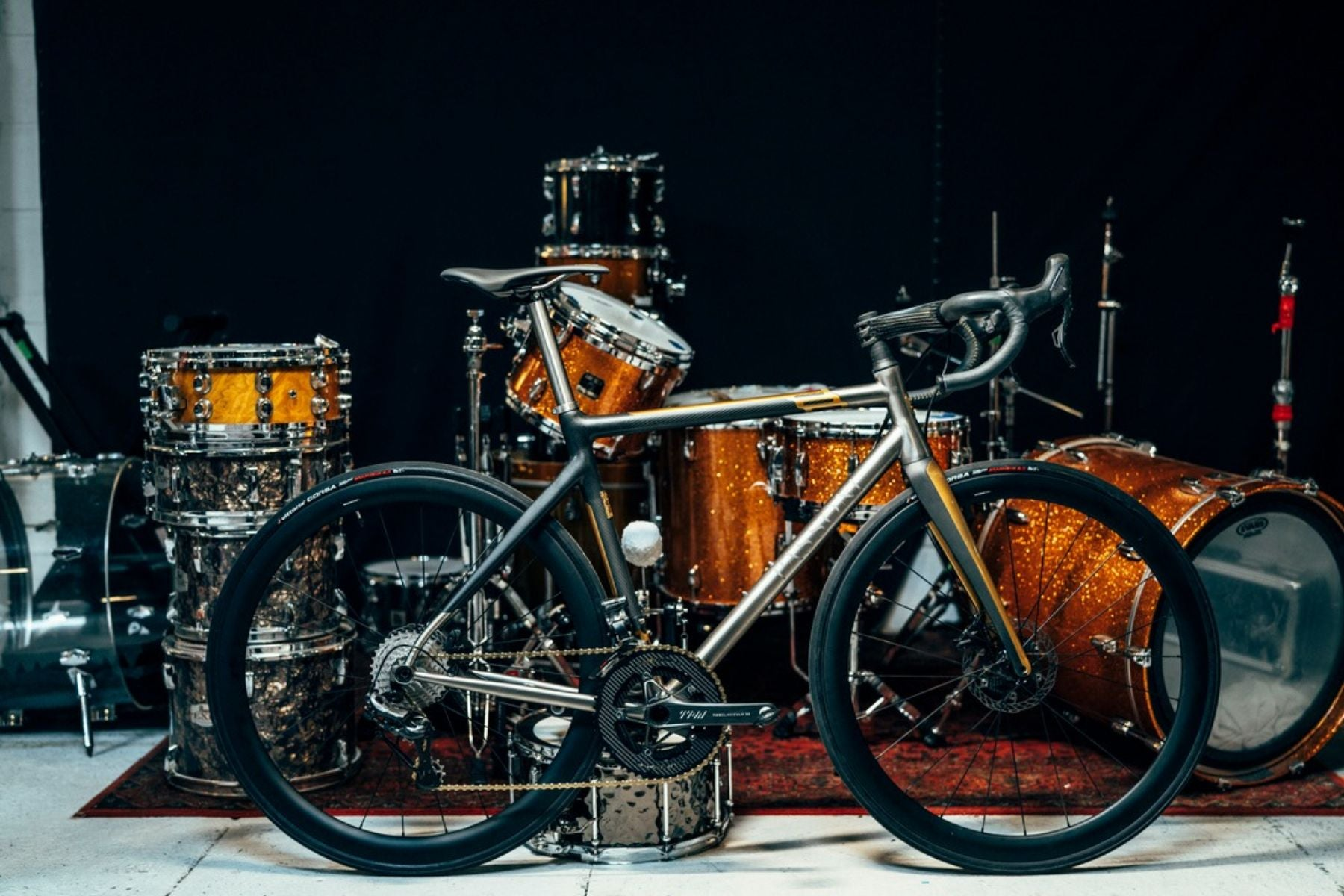

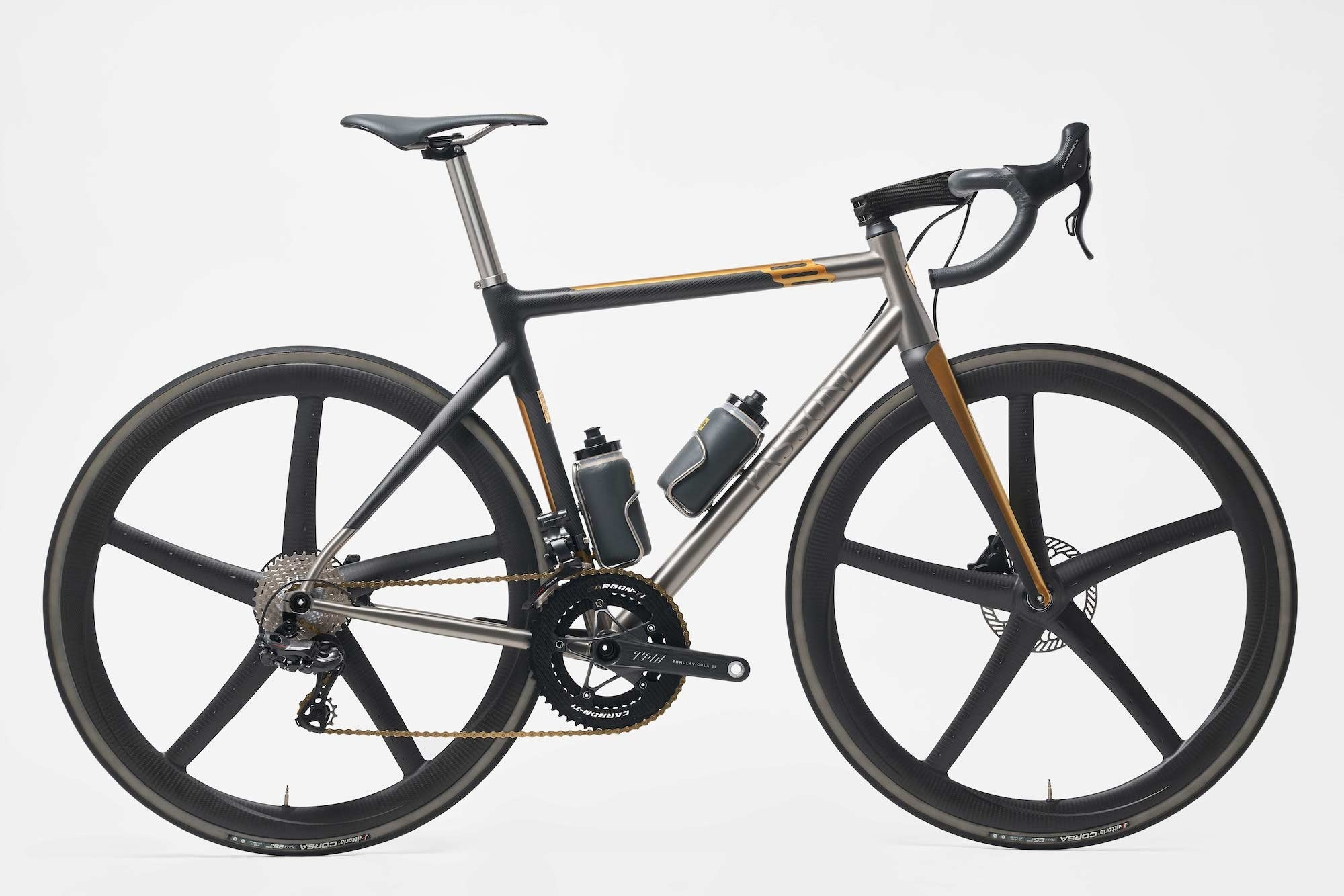

To celebrate our 30th birthday, Passoni has produced 30 limited edition pieces of the Vinci. Carbon and titanium are perfectly combined to create a unique product with unique characteristics.

The Vinci represents the apogee of our commitment to design and engineering excellence, crafted from our ground-breaking carbo-titanium tubes, alongside complete titanium tubing at the headtube, downtube, bottom bracket shell and chainstays.

Frame Specification

Tubes

Titanium grade 9 (3Al / 2,5V) with different thicknesses, Carbo-Titanium tubes, Passoni Project, for seat tube and top tube.Titanium grade 5 (6Al / 4V) for head tube, bottom bracket shell and dropouts, CNC works.

Front triangle

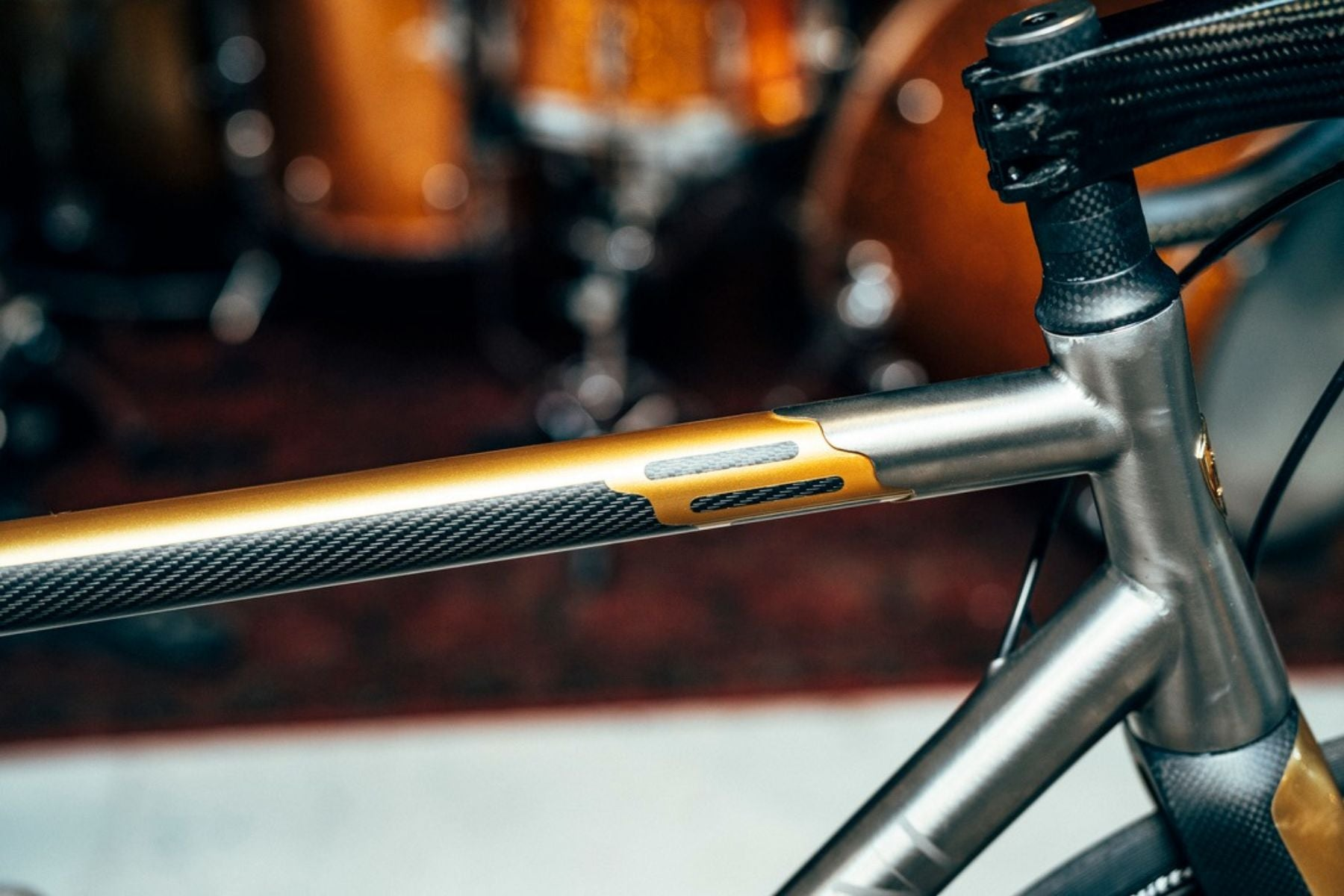

Carbo-titanium top tube Ø 35mm, carbo-titanium seat tube Ø 35 mm, titanium downtube Ø 42mm.

Rear triangle

Carbo-Titanium Aero seat stays Ø 21x24mm. Oval chain stays taper 21 x 27 mm S-shaped.

Bottom bracket shell

Titanium grade 5, CNC machined, Passoni engraved logo and frame code, PF30 system.

Head tube

Integrated conical Ø 56mm, CNC machined, bearings Ø 1”1/8 upper – 1”1/2 lower.

Dropouts

Integrated conical Ø 56mm, CNC machined, bearings Ø 1”1/8 upper – 1”1/2 lower.

Seat post

Traditional seat post.

Fork

Columbus Futura Ø 56 mm, thru-axle 100 x 12 customised Passoni.

Options

The frame is available for mechanical groupset, Di2/EPS groupset or wireless groupset.

Place an order with us

Drop us a note using this form if you are looking to purchase this model.

As this model is customizable, we will contact you to discuss in greater detail on available options and finish.

Alternatively, you can email us at sales@bikesnbites.com
