Science meets crafstmanship

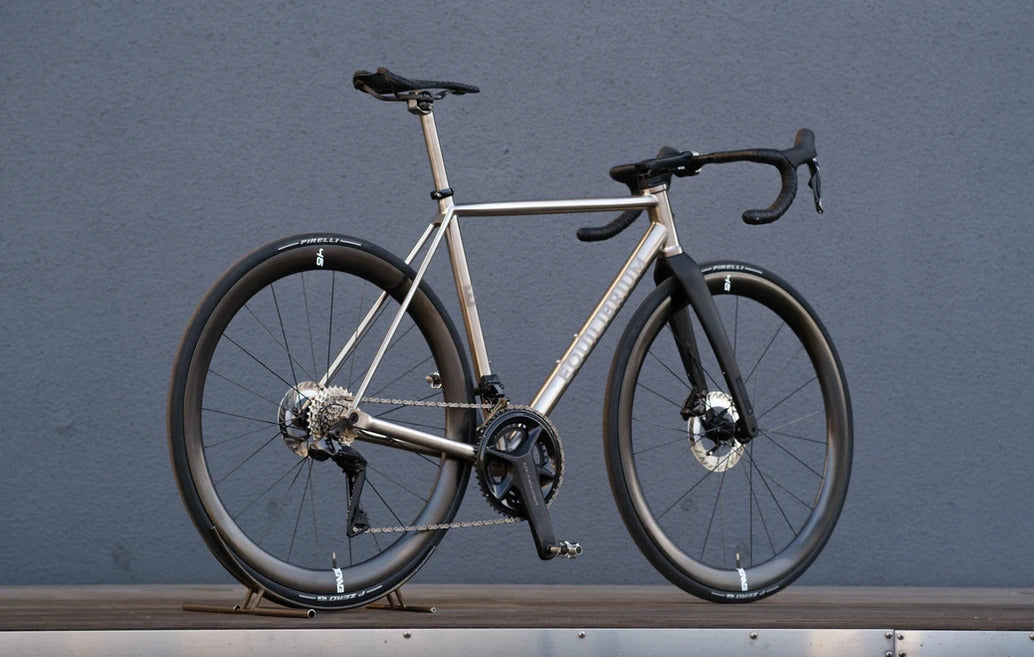

New era of frame building is here - introducing 10years evolution of EQUILIBRIUM !!!
New E1 is a mixture of handmade craftsmanship, latest innovation in 3D printing technologies and modern cycling demands.
Technical specification
Frame
Titanium 3/2.5 double butted tubing, 3D printed seat stay bridge and drop outs, tire clearance 25-35c , flat mount disc brakes, 12x142mm thru axle
Fork
No.6 integrated cable routing fork, 1 - 1/2 steering column,
offset 45/50 , tire clearance 25-38c
Geometry
Full custom.
Finishing
Brushed or glass bead blasted finish with one color logo anodizing,
Cerakote or more complicated anodizing patterns available at upcharge.

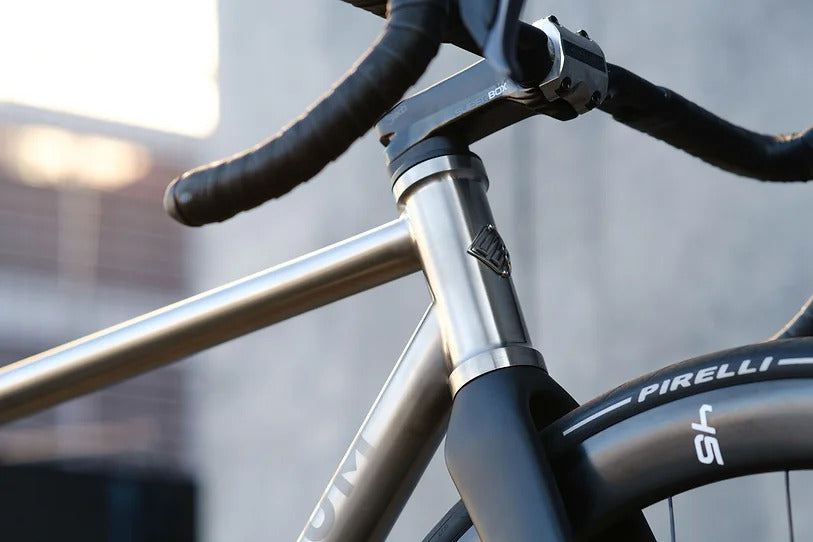

Following the latest trend of fully integrated wiring systems, we couldn't stay aside and took a stab in designing an original spec head tube to accept Deda integrated heads set and Super box Deda stem in a tandem, original titanium stem plate is just an icyng on the cake .
The result is truly astonishing, not only in the looks department, but steering got lighter, and it clears the space for a handlebar bag if you're going to use one as well.
After building all round bikes for a couple of years we felt an urge to re-create a proper Super bike once again similar to the original E1 model that was introduced 6 years ago and got very popular amongst our customers.
Lucky enough, we got a new member in our team who could visualize the concepts into reality by modeling 3D parts and the whole frame's 1 x 1 ratio prototype in plastic to make sure the total balance of the frame and wire routing is spot on.
To achieve desired riding characteristics, we decided to go for stiffer down portion of the frame and top part we made oval top tube and thin seat stays to absorb the road buzz and make the bike compliant vertically.

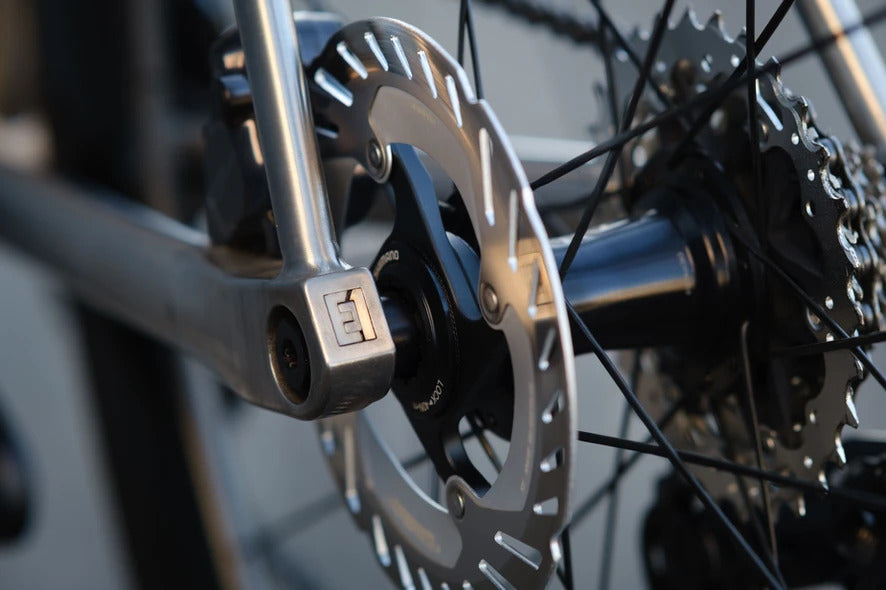

And last but not least our special drop outs for flat mount disc calipers and variety derailleur hanger interchangeable options, 3D printed as well.
Place an order with us
Drop us a note using this form if you are looking to purchase this model.
As this model is customizable, we will contact you to discuss in greater detail on available options and finish.
Alternatively, you can email us at enquiries@bikesnbites.com
