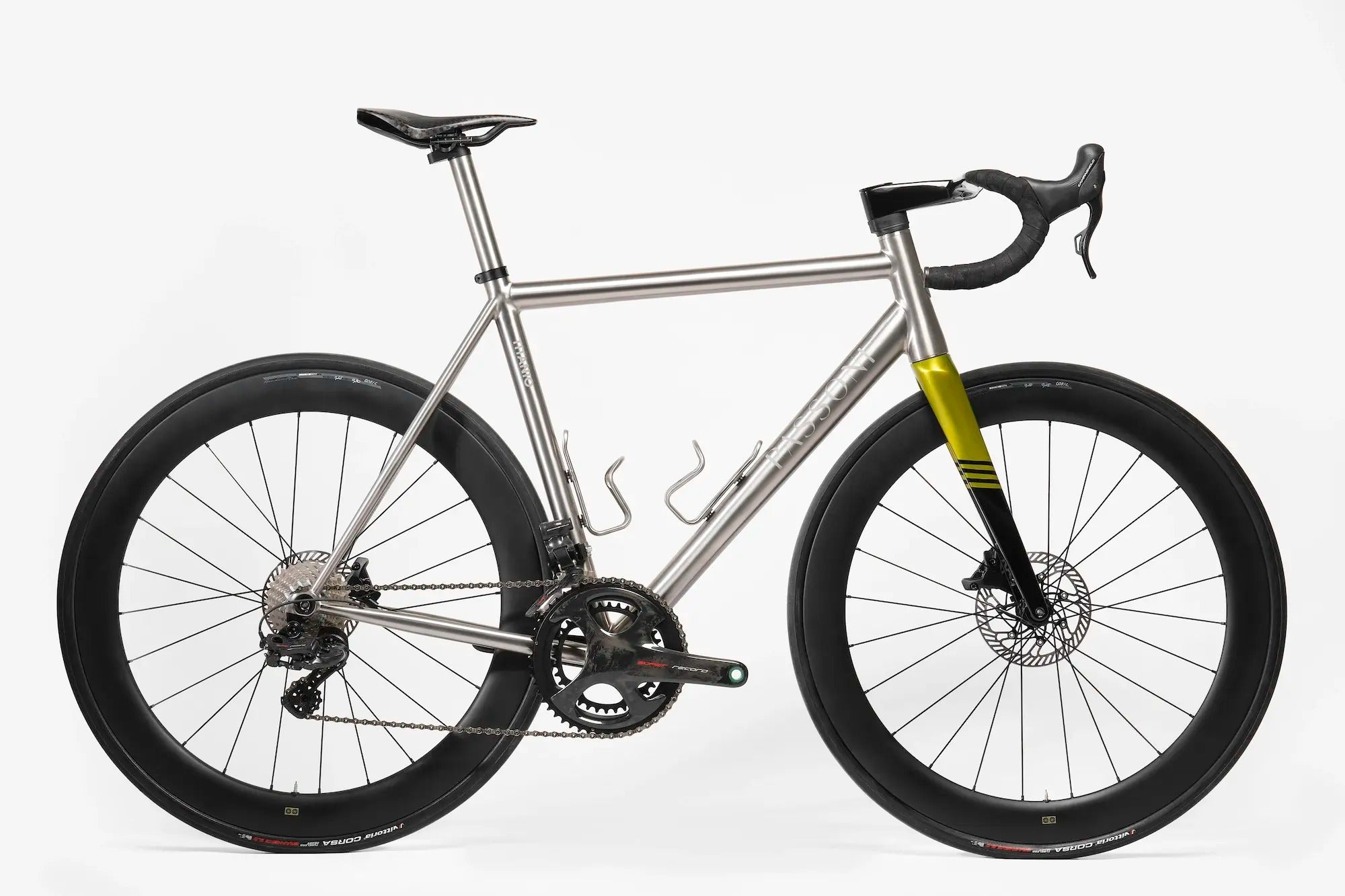

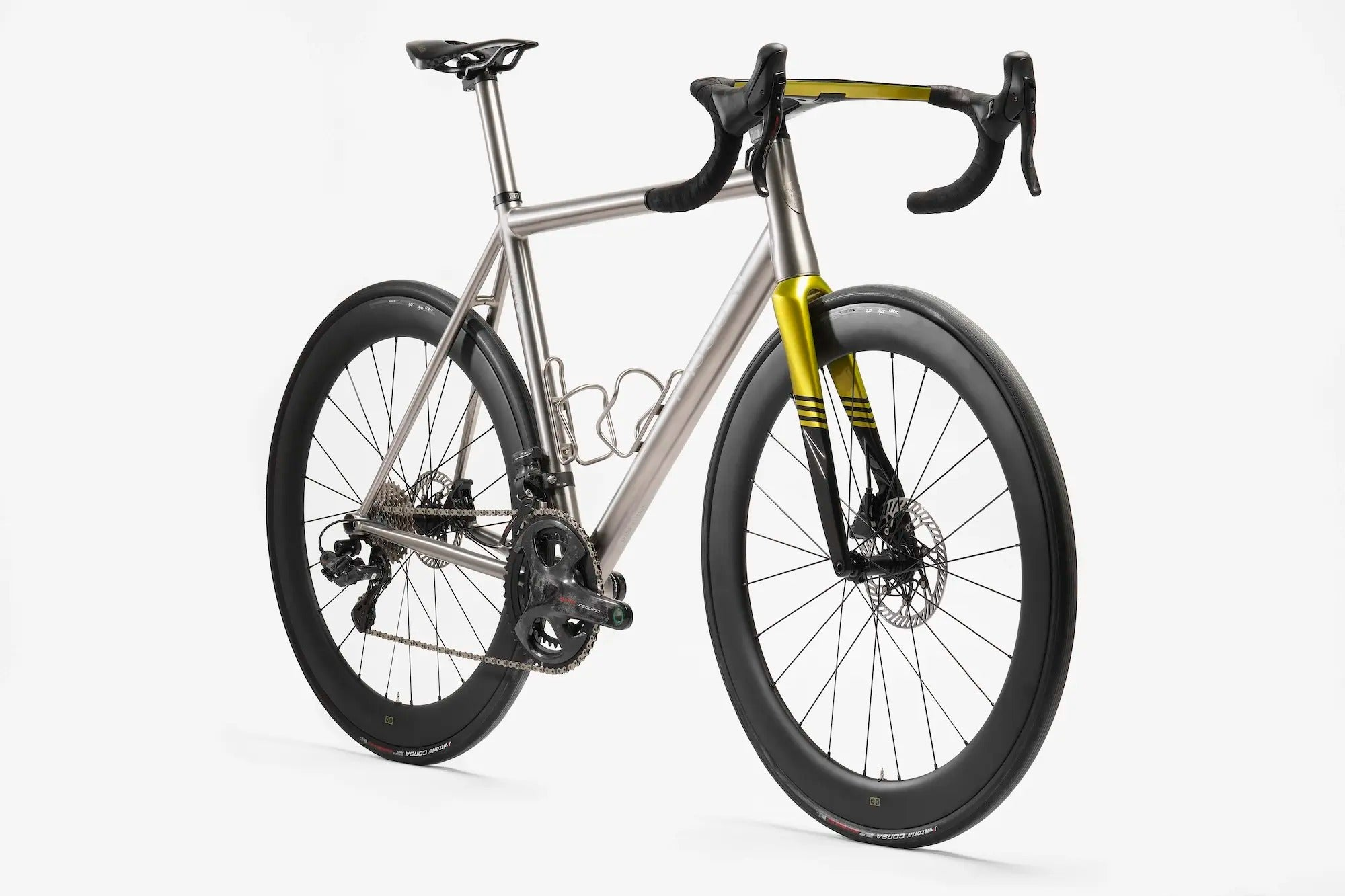

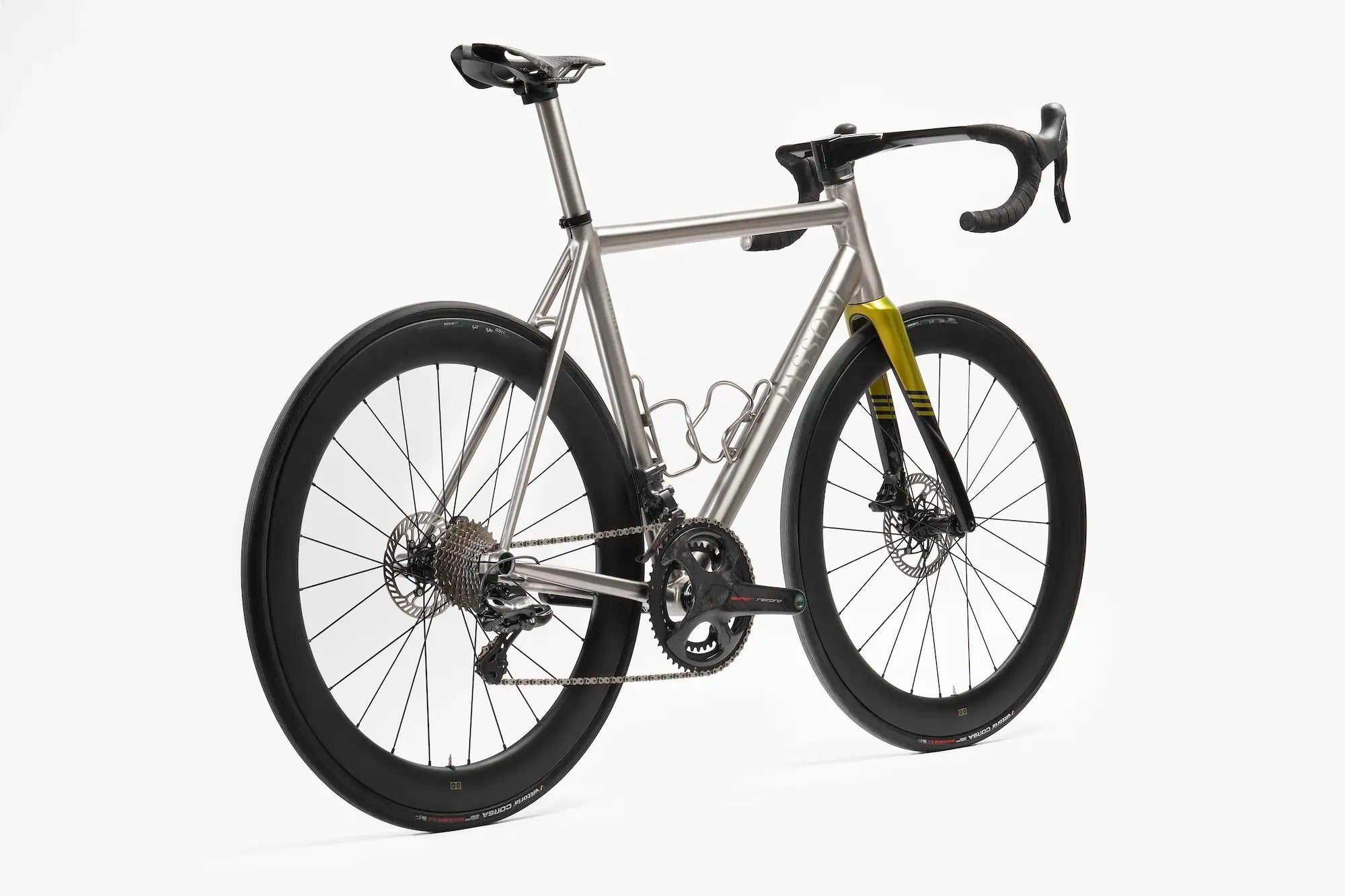

Titanio Disco
A bike made to get the most out of the rider. Our race-focused Titanio Disco offers a finely balanced mix of speed and control
“The Titanio offers a faster and more responsive ride thanks to oversized tubes that complement aggressive riding. Equally able to absorb fatigue-inducing vibration thrown up from the road, the result is a bike that remains ready to attack even after many hard hours on the road”
The Titanio Disco occupies the intersection of Passoni’s racing heritage and cycling’s future. A timeless titanium racer made to match the latest groupset technology, its disc brakes are as beautifully integrated as they are powerful. Giving its rider licence to push the bike to the very edge of its capabilities, it provides dynamism and control in perfect balance. Instantly recognisable for its classic profile, the Titanio Disco is nevertheless built to accommodate the latest electronic shifting. Leaving its appearance unblemished, features like its neat thru-axle dropouts and slender seatstays show off the craftsmanship involved in creating a bike that’s utilitarian in its pursuit of speed.
If correctly integrated, disc brakes can both add control and enhance the aesthetic of the bicycle. To achieve this, our designers created bespoke mounts and dropouts from the highest grades of titanium. Cast and finished at our Milan-based atelier; they’re made with the same attention to detail found in every other element of the frame. Elegantly bringing the latest features to a timeless racing bicycle, their ability to accommodate the most modern standards ensure the Titanio Disco will remain competitive as long as its rider retains the desire to compete.
Demanding to be built using the very latest in groupset technology, the Titanio Disco pairs perfectly with electronic derailleurs for the most efficient and effortless shifting. Available made to measure, the geometry of the Titanio Disco can also be tailored to the exact morphology of its rider. However, regardless of the form each bicycle takes, every Titanio Disco is built using a front triangle constructed from oversized tubing. Incredibly light while remaining resolutely stiff, this is paired to an equally robust PF30 type bottom bracket. With each element helping to create a ride that will inspire anyone to pin on a race number, the Titanio Disco is among the most aggressive bicycles we produce.
With both the frame and customised Columbus Futura fork as a canvas, the Titanio Disco can be painted and finished to match the tastes of its owner. Highlighting the work of our master craftspeople, its tubes are diligently glazed by hand before a range of graphics can be applied directly to the frame via selective sandblasting.
Frame Specification
Tubes
Titanium grade 9 (3Al / 2,5V) with different thicknesses, drawn and strengthened. Titanium grade 5 (6Al / 4V) for head tube, bottom bracket shell and dropouts, CNC works.
Front triangle
Round tubes, top tube Ø 36.4mm, seat tube Ø 35 mm in carbo-titanium, downtube Ø 48mm bi-oval.
Rear triangle
Round seat stays taper Ø 16 mm. Oval chain stays taper 21 x 27 mm S-shaped.
Bottom bracket shell
Titanium grade 5, CNC machined, Passoni engraved logo and frame code, PF30 system.
Head tube
Integrated conical Ø 56mm, CNC machined, bearings Ø 1”1/8 upper – 1”1/2 lower.

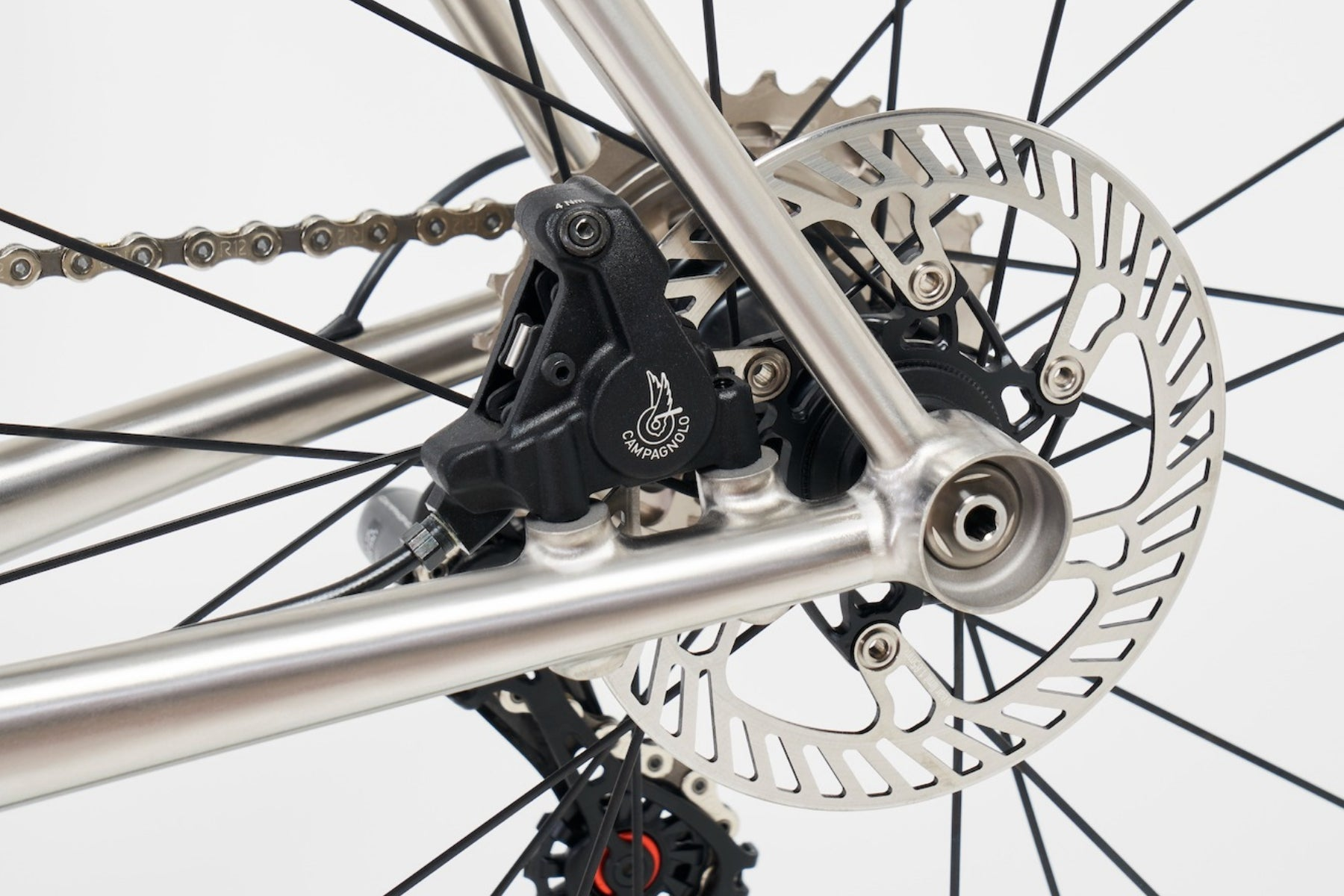

Dropouts
Titanium grade 5 CNC machined, Ergal insert for disc brake thru-axle support.

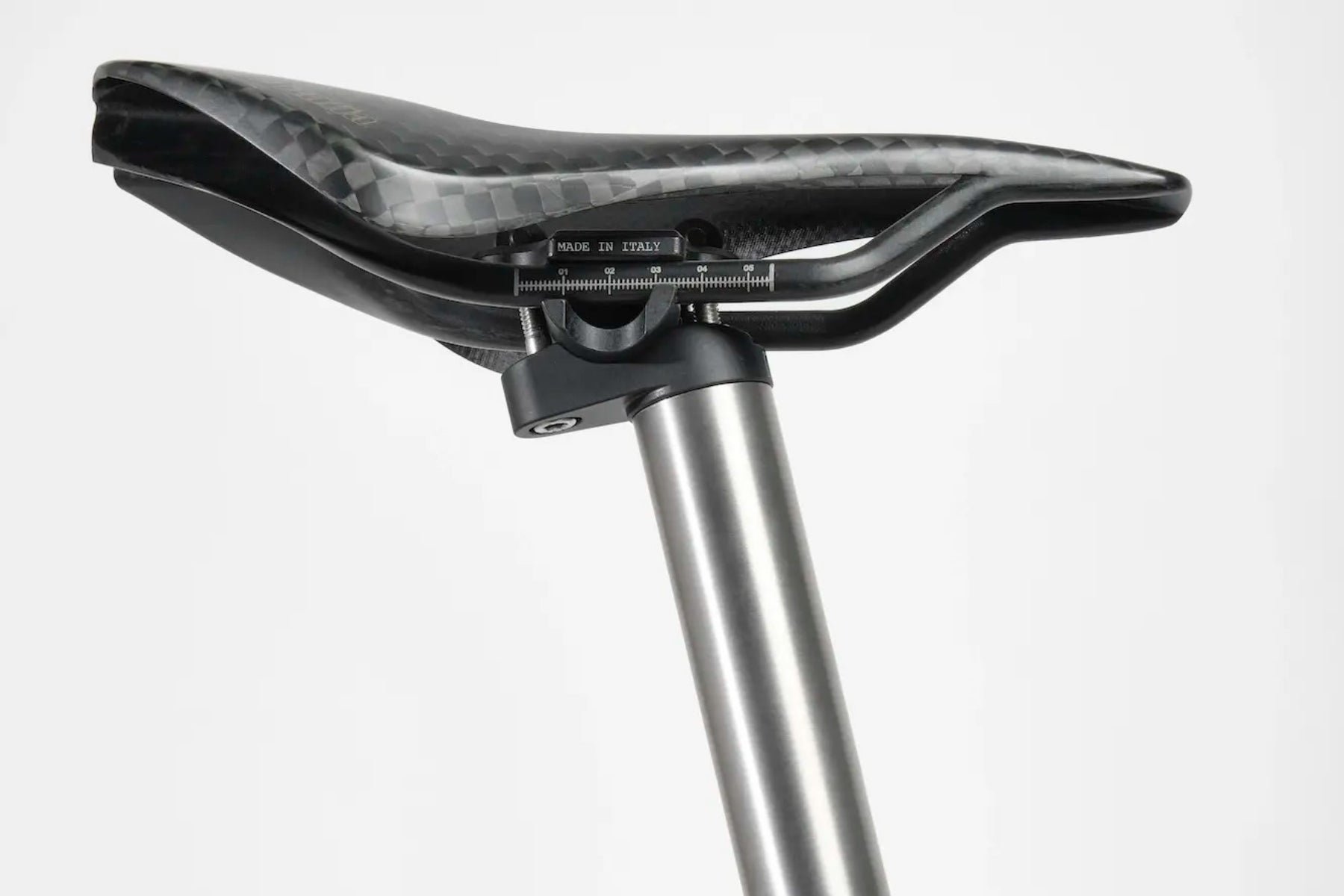

Seatpost
Traditional seat post.

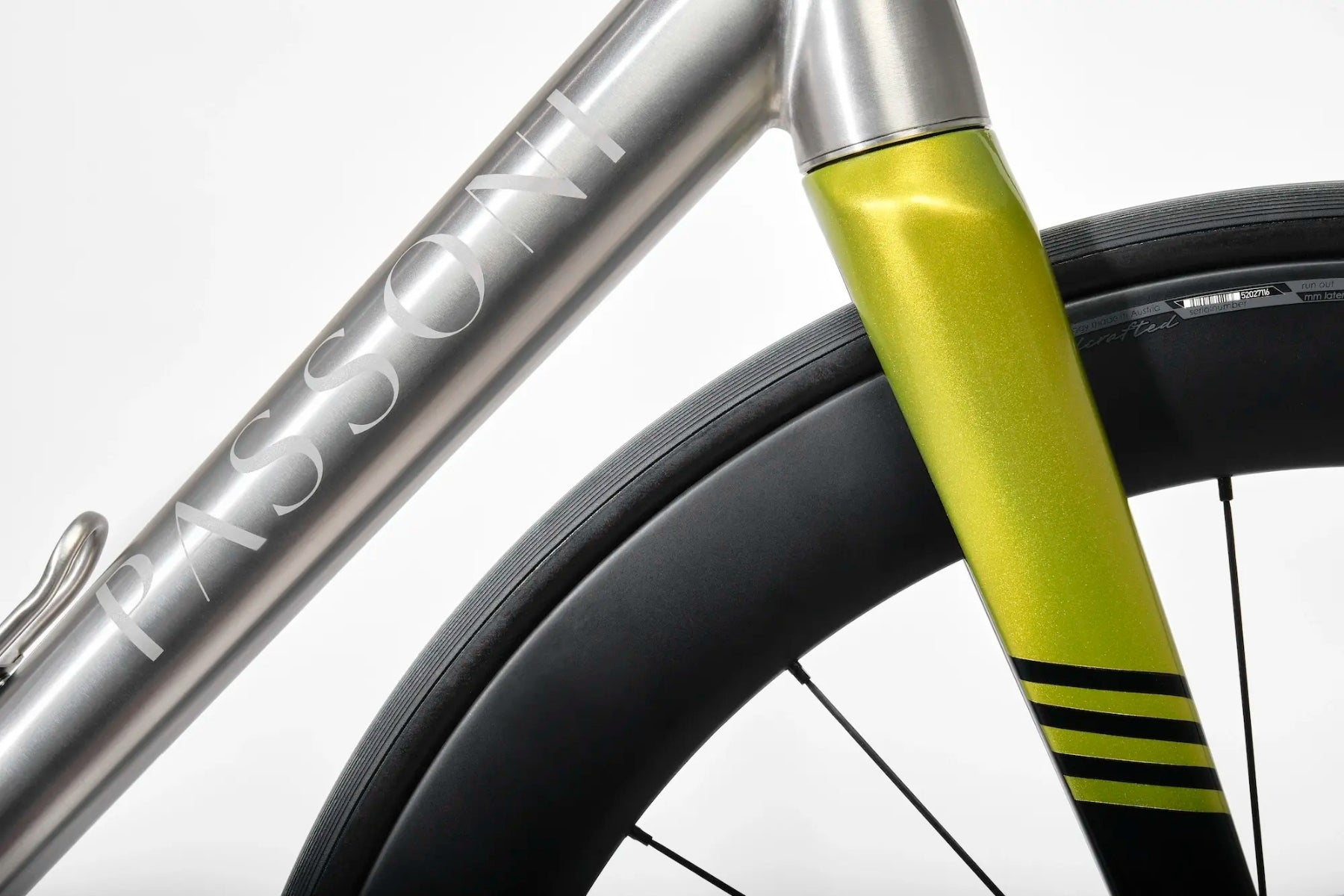

Fork
Columbus Futura Ø 56 mm, thru-axle 100 x 12 customised Passoni.
Options
The frame is available for mechanical groupset, Di2/EPS groupset or wireless groupset.
The famous Passoni finishing
We believe in the beauty of simplicity. By constantly analysing, evolving and refining we aim craft exceptional bikes and deliver an unprecedented level of service. Over the decades we have applied this methodology to our Made-to-Measure process.
THE SANDBLASTED FINISHING
Sandblasted & Anodized (F3)
Aesthetic welding ripples, tubes finished by glass beads blasting, graphics applied directly on the tube in titanium by anodizing process.
THE MACHINED SATING FINISHING
The "Vinci" finishing (F2)
Aesthetic welding ripples, tubes machine satin finished, graphics applied directly on the tube in titanium by sandblast.
THE CLASSIC PASSONI FINISHING
Glazed by hand (F1)
Welding joints and tubes glazed by hand, graphics applied directly on the tube in titanium by sandblast.
Place an order with us
Drop us a note using this form if you are looking to purchase this model.
As this model is customizable, we will contact you to discuss in greater detail on available options and finish.
Alternatively, you can email us at enquiries@bikesnbites.com
