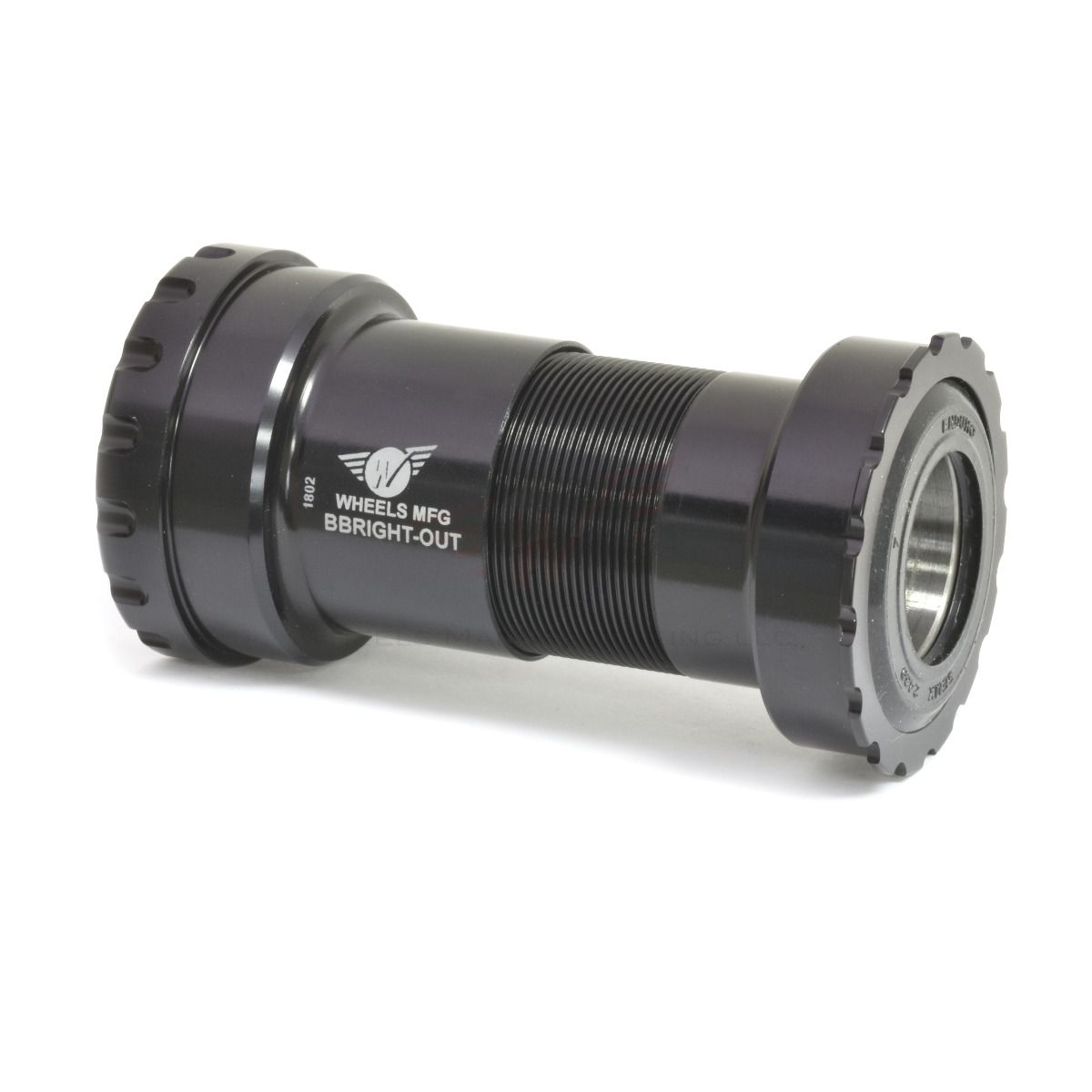

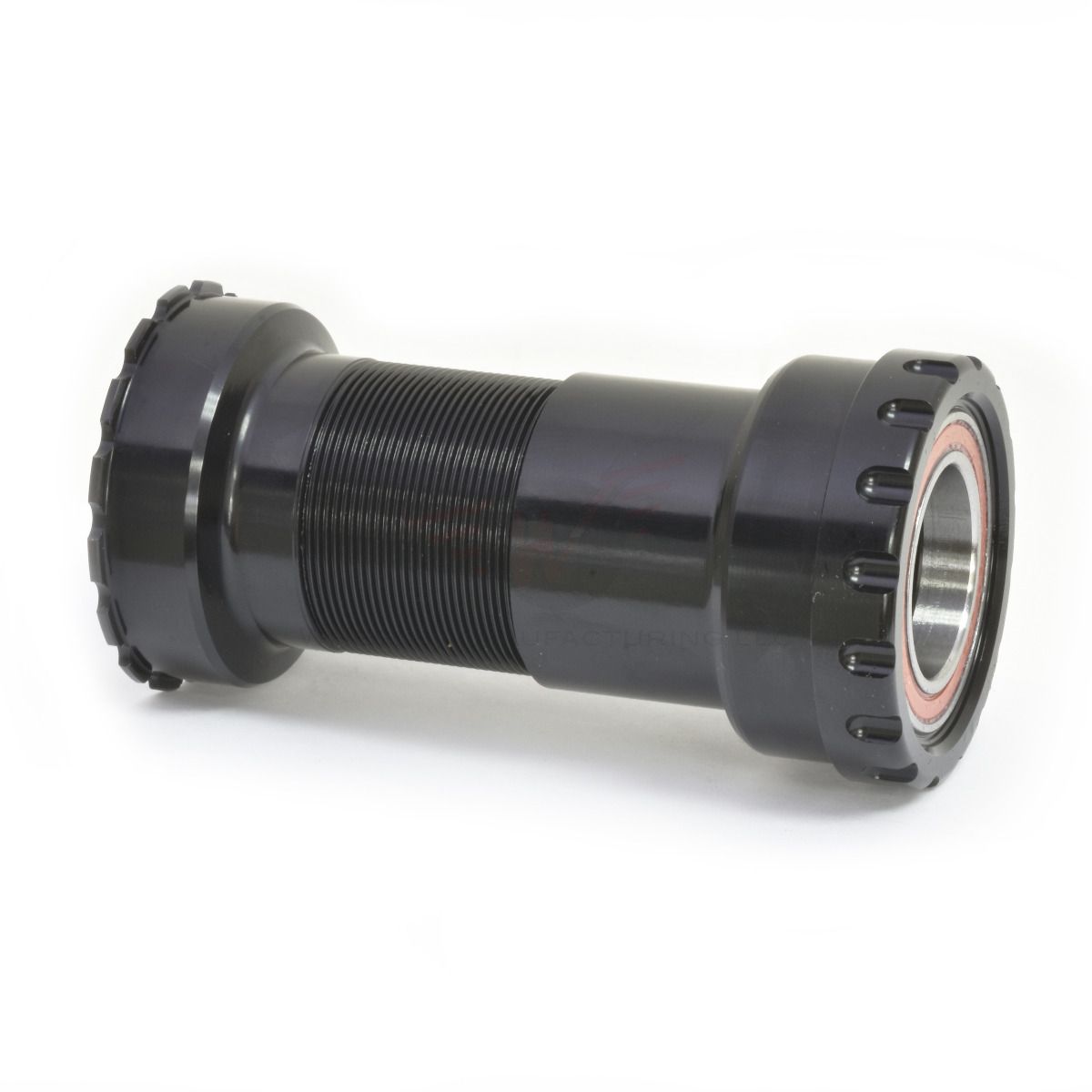

Wheels Manufacturing BBRight™ Outboard Angular Contact BB for 24mm (Shimano) Cranks - Black

Sale price$218.00
Sold out

  • Bearings: Enduro Angular Contact
  • Color: Black
  • Bottom Bracket/Frame Interface: BBRight™ Press Fit
  • Bottom Bracket Shell Width: 79mm
  • Bottom Bracket Shell I.D.: 46mm
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 48.5mm x 16 notch
  • Over Bearing Width: 91.5mm in 79mm wide shell*
  • Weight: 146g
  • Packaged for retail display
* Over Bearing Width Dimensions include supplied silicone dust shields. Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter, 79mm shell width):
  • BBRight™
Compatible with 24.00mm spindle diameter cranksets.* *Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. Please measure your FSA crank spindle. If spindle is 24.07mm, this BB will not work! Purchase our FSA 24.07x37 ceramic hybrid bearings separately. DOWNLOAD: BBRIGHT-OUT INSTALLATION / SERVICE
